Measuring your plate?
Small Mod. Max Aesthetic.
Overview
One reading. Done.

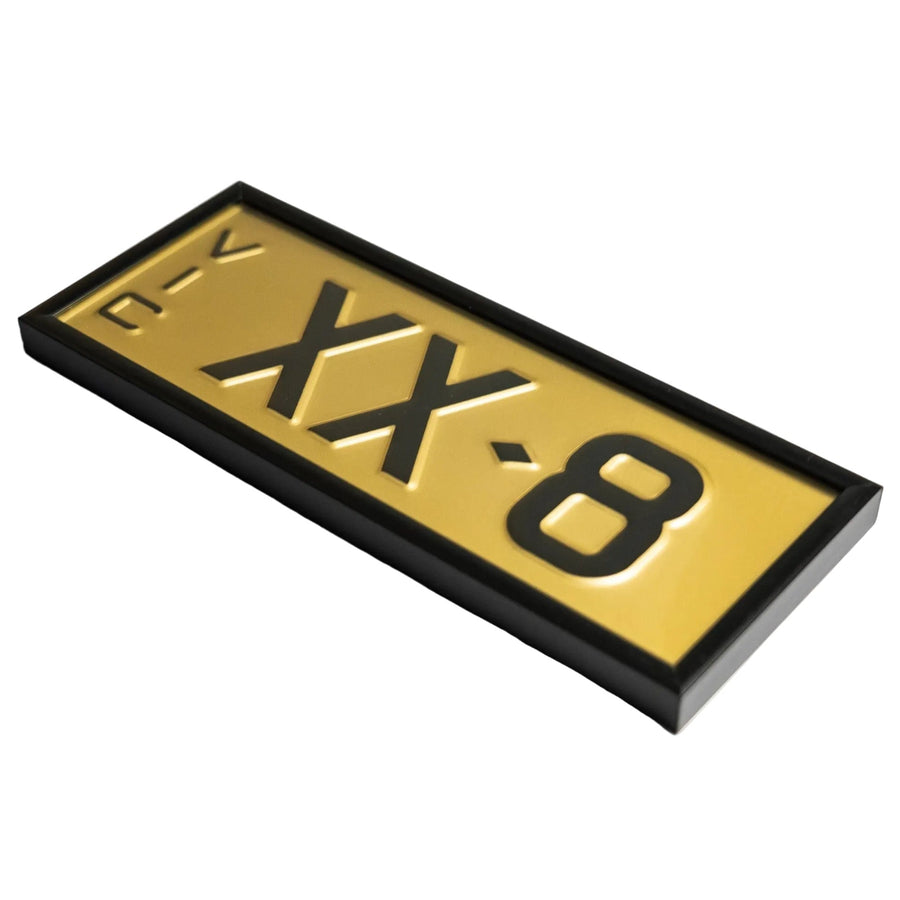

The distance between the centres of your plate's two mounting holes is the number every FLX bracket is built around. Lay a ruler across both holes, note the reading at each hole's centre, and the difference between the two is your spacing — the calculator below does the maths for you.
Measure the plate itself, not any frame or surround currently on it.
30 sec
With a ruler
2
Ruler readings
±2 mm
Tolerance allowed
How to measure
Centre of one hole to the centre of the other.
Measurement guide
Two readings. We do the maths.
Anywhere along the ruler is fine — it does not need to start at zero. Just make sure it crosses the centre of both mounting holes.
Read the number on the ruler at the centre of the left hole. Millimetres only. That's A.
Without moving the ruler, read the number at the centre of the right hole. That's B. Type both into the calculator below — done.
In several states the front and rear plates are different sizes. Repeat the two readings on your second plate before ordering.
Spacing calculator
Type your two readings.
Enter both readings and your spacing appears here. It carries into the form below automatically.
Verify before you order
